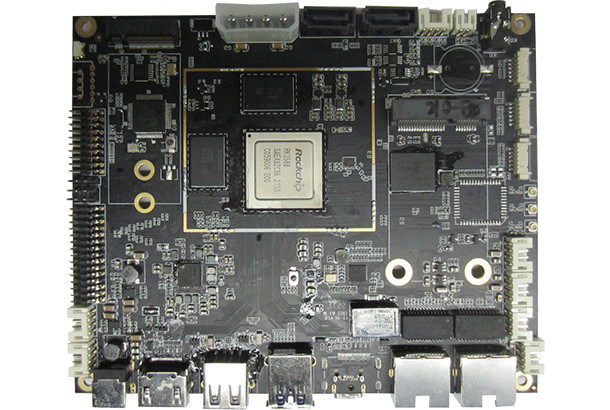

YT-91 RK3588 Rockchip Board PCBA For Edge Computing / Industrial Control

YT-91 RK3588 Rockchip Board PCBA For Edge Computing / Industrial Control

  • High Light

    YT-91 Rockchip Board


    Industrial Control Rockchip Board


    RK3588 Board

  • CPU
    Quad Cortex-A76 2.6GHZ +Quad Cortex-A55
  • NNIP
    6 Tops
  • ISP
    48M ISP, 3F HDR 120Db 2D/3D NR
  • DDR
    Dual Channels 64bit LP4/LP4x/LP5
  • ROM
    EMMC 5.1 With HS400
  • Display
  • SDIO
    SDIO 3.0 X2
  • Peripheral Equipment
    USB 2.0 HOST X4, USB2.0 OTG
  • Place of Origin
  • Brand Name
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    white box
  • Delivery Time
    20 Work days
  • Payment Terms
  • Supply Ability

YT-91 RK3588 Rockchip Board PCBA For Edge Computing / Industrial Control

YT-91 RK3588 Rockchip PCBA for Edge computing, industrial control, Ultra HD display


Yt-91 is a motherboard based on Ruixin micro rk3588. Rk3588 is a new generation flagship high-end processor launched by Ruixin micro. It adopts 8nm process design, is equipped with four core A76 + eight core CPU of four core A55 and arm high-performance GPU, and has built-in 6T computing power NPU. With strong visual processing ability, it can support a variety of fast face unlocking schemes such as structured light and TOF; Support rich display interfaces, up to 8K display processing capacity; It has strong scalability and supports pcie3 0,SATA3. 0. Dual typec / usb3 1 and other high-speed interfaces can be used for AI computing power, image data processing and other extensions. It is used in armpc, high-end tablet computer, edge computing server, virtual reality, NVR, 8K TV and other directions.


Electrical and Structural Parameters


Electrical Parameters
input voltage 4.2V/5A
output voltage 1.8v/3.3v (sleep voltage: 0V after system sleep)
Working temperature -10~70 degrees [actual measurement can reach -40 degrees to 80 degrees]
Structural parameters
Appearance Stamp hole mode
Core board size 85mm*85mm
Pin distance 1.2mm
Pin pad size 1.25mm*0.7mm
Pin quality 320PIN
Layer 8 layers


Scope of application


Ruixin micro rk3568 chip is a general-purpose SOC designed for consumer industry applications. The CPU adopts 4-core A55 architecture processor, integrated G52 graphics processor, built-in independent NPU, and runs Android 11 and Linux systems. Rk3568 is mainly customized for tablet computers, speakers with screens, Android laptops, dictionary pens and other consumer products, as well as face payment POS machines, e-books, cloud terminals, video phones, NAS storage and other industrial products.
