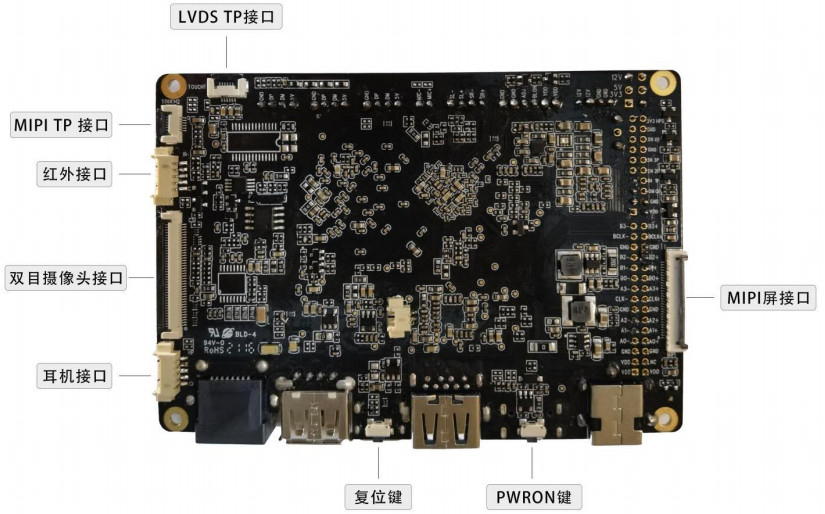

YT-64 RK3566 PCBA Main Board Smart Face Recognition Access Control Board

YT-64 RK3566 PCBA Main Board Smart Face Recognition Access Control Board

YT-64 is a motherboard based on Rockchip RK3566,  which is independently developed, produced

and sold by Shenzhen Yecon Technology Co., Ltd.

Rockchip RK3566 chip is a general-purpose SoC specially designed for consumer industry application.

The CPU adopts 4-core A55 architecture processor,    integrated G52 graphics processor, built-in inde

pendent NPU,  and runs Android 11 and Linux systems.    RK3566 is mainly customized for consumer

products such as tablet computers, speakers with screen, Android notebooks, dictionary pens, etc. as

well as face payment POS machines,  e-book, cloud terminals, video phones, NAS storage and other

industry products.

RK3566 has built-in Rockchip self-developed NPU, computing power 0.8Tops, 512 INT8 MAC 128 INT16

/FP16/BFP16 MAC Up to 800MHz. Rockchip also provide developer with an easy-to-use model conversion

tool RKNN-Toolkit, which support one-click conversion of mainstream architecture models in Caffe / Tensor

Flow / TF-Lite / ONNX / PyTorch / Keras / Darknet.

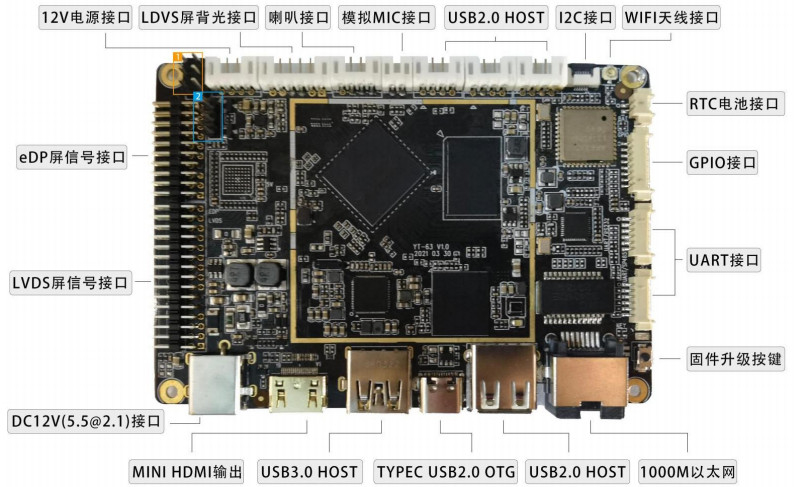

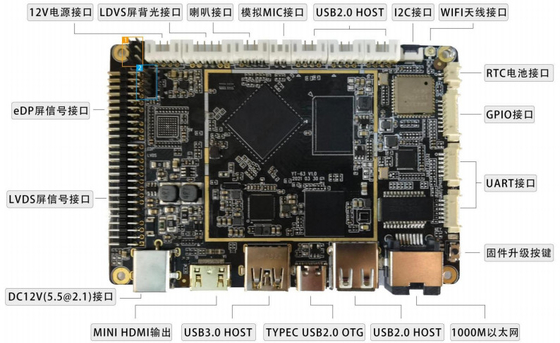

RK3566 has rich interface expansion capabilities.    Support a variety of peripheral high-speed interfaces,

support 6 USB2.0 ports, 1xUSB3.0/USB2.0 HOST + 3xUSB2.0 HOST + 1xUSB2.0 OTG. Support Gigabit

Ethernet port, multi-camera support Support MIPI CSI 4Lanes, can be split into 2x2Lanes for independent

use Support 16bit  DVP interface, support BT1120 input, support VC mode. RK3566 has a complete display

interface, support HDMI 2.0 output, support dual-channel MIPI DSI,  drive 2.5K LCD screen, supports Eink,

can directly drive ink screen, and supports eDp. RK3566 has ample peripheral interfaces, support 10xUART,

6x I2C, 16x PWM, 4x SPI, 4xADC.

System Parameter

Basic Parameter
