High Light
YT-19 PCB Motherboard
,OEM PCB Motherboard
,RK3399 PCB Main Board
-
CPUSix-core High-performance CPU
-
NPUComposed Of Four A53 Cores And Two A72 Cores
-
Working VoltageDC 9V To 24V
-
Working Current≦2A
-
Current Memory≦4mA
-
Video Output TypDSI MIPI
-
Place of OriginChina
-
Brand NameOEM
-
Model NumberYT-19
-
Minimum Order Quantity1pcs
-
PriceUS$75-US$85
-
Packaging Detailswhite box
-
Delivery Time20 Work days
-
Payment TermsT/T
-
Supply Ability1000PCS/WEEK

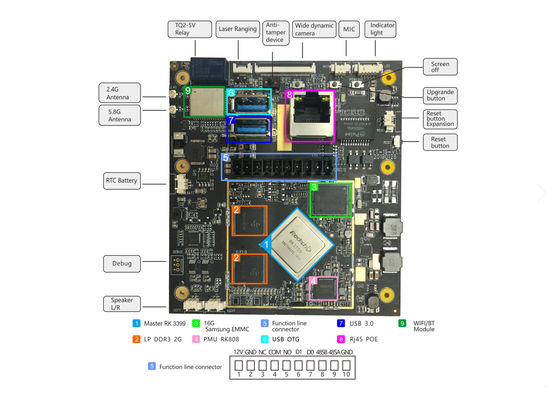

YT-19 RK3399 PCB Motherboard / AI Main Board For Face Recognition System
YT-19 RK3399 AI Main Board Face Recognition Access Control Attendance System
Basic Parameter
| Basic Parameter | |
| Video output type | DSI MIPI |
| Display resolution | Vertical screen 800*1280 |
| Sound output | AC97/IIS/PCM interface, support recording and playback |
| Touch mode | Capacitive touch, USB or serial ports can be used to extend the resistive touch |
| Ethernet | Support Gigabit Ethernet |
| POE power supply | IEEE 802.3af/at-Compliant |
| USB HOST | 1-way USB3.0 |
| USB OTG | 1-way USB3.0 |
| RS-485 | Half-duplex RS-485 |
| Wegan | Half-duplex 26bit, 34bit Wegan |
| Access control function | Panasonic TQ2-5V relay is adopted |
| Wide dynamic binocular camera | ON Semiconductor AR0230 |
| Human body induction | The maximum laser ranging is 2 meters |
| Camera complement | Dynamic cold white adjustable |
| WIFI | 2.4G,5.8G |
| Bluetooth | BlueTooth 5.0 |
| Microphone | Support the waterproof |
| Speaker | Double-way 4 ohm 1.5W |
| Board size | 103.5mm(L)*95mm(W) *4mm(H) |
