Six Core Android PCB Motherboard Default 2+16G Storage 8+256G Optional Development PCBA

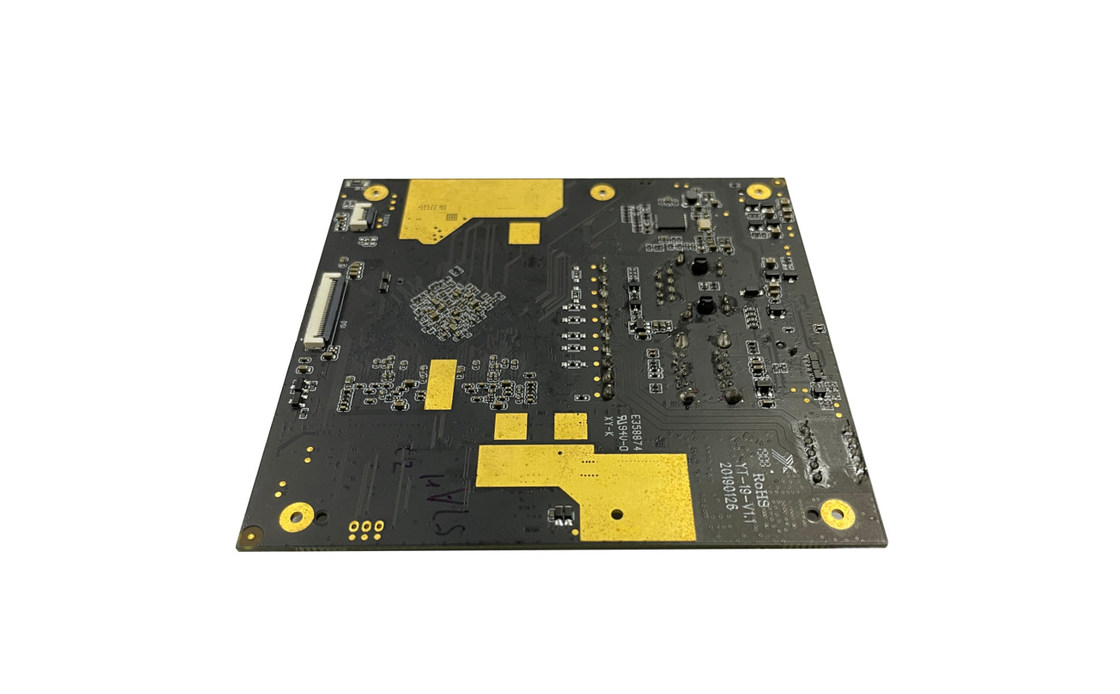

YT-19 RK3399 Android Main Board Default 2+16G Storage 8+256G Optional Development PCBA

• Adopt dividing line design, the size is only 103.5mm*95mm*4mm
• Use RK's own RK808 PMU to ensure stable and reliable work, at the same time, the cost is low enough;
• Support emmc of a variety of brands and capacities, the default use of Samsung 16GB emmc;
• Dual channel LPDDR3 design, support 2GB capacity by default, 4GB capacity can be customized;
• Support power dormant and wake;
• Support android7.1.1 operating systems;
• Support wide dynamic binocular camera and bio-assay detection, using AR0230 chip;
• Support laser infrared distance measurement function;
• Support dynamic adjustment of white filling light, red indicator, green indicator;
• Supports voice microphone;
• Support multi-touch function;
• Support 5.8G, 2.4G WiFi and Bluetooth 5.0;
• Supports Gigabit wired Ethernet;
• Supports POE power supply of Maxim solution IEEE 802.3af/at-Compliant；
• Support OTG and USB 3.0 interfaces;
• Support half-duplex RS-485 function;
• Support half-duplex 26bit, 34bit Wegan function;
• Support access control function, using Panasonic TQ2-5V relay;

Electrical and structural parameters
