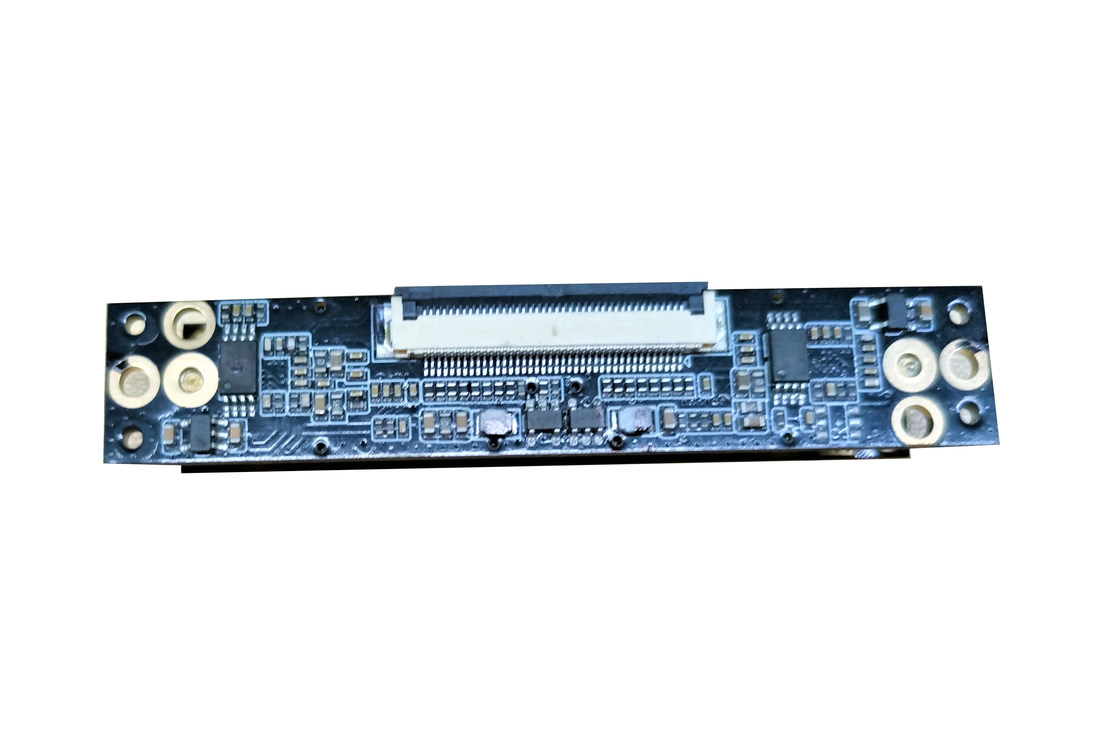

2MP MIPI Dynamic Binocular Camera Module PCB Binocular Wide Dual Lens
2MP MIPI Binocular Wide Dual Lens Dynamic Binocular Camera Module
The main features of the product:
· 1/2.7" binocular 2 million high-definition image sensor
·Black and white imaging distance support 40CM-1M,
Color imaging distance support 40CM to infinity.
·Fixed 30 frames, no smear
·Ultra low power consumption
·MIPI high-speed transmission
Key Specifications:
| Module No. | RS-D221S181-V5.0 | ||
| Module Size | 69mm ×13mm ×11.5mm±0.2 mm | ||
| Temperature (Operation) | -30°C to 85°C | ||
| Temperature (Stable Image) | 0°C to 70°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fix | ||
| Object distance | 45CM-200CM | ||
| PCB printing ink | black | ||
| interface | USB | ||
| Power | power 5V | ||
| Operating system request | Windows 2000/XP/7/8/8.1/10, Linux, Android | ||
| Package | Anti-electrostatic tray | ||
| Certifications | |||
| Sensor Type | RGB | IR | |
| Active Array Size | 1920*1080 | 1920*1080 | |
| Pixel Size | 3.0µm x 3.0µm | 3.0µm x 3.0µm | |
| Maximum Image Transfer Rate | 30fps (1920*1080) | 30fps (1920*1080) | |
| S/N Ratio | 49dB | 49dB | |
| Dynamic Range | UP to 100dB | UP to 85dB | |
| Package | CSP | CSP | |
| Lens Type | |||
| Lens Construction | 650nm/850nm (band pass) | ||
| F/No | 2.0 | ||
| BFL(Optical) | 0.7mm | ||
| FOV | 80° | ||
| HORIZONTAL | 69.5° | ||
| VERTICAL | 42.6° | ||
| TV Distortion | <1% | ||
| Relative Illumination (Sensor) | >33.8% | ||
| IR Filter | 650nm visible light/850nm+10nm | ||
| DSP Type | TH7312 | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | RGB(YUV) | IR(YUV) | |
|
1920*1080 1280*720 800*600 640*480 |
1920*1080 1280*720 800*600 640*480 |
||
| Fixed Pattern Noise | <0.03%of VPEAK-TO-PEAK | ||
| Package | TFBGA64 | ||
| Exterior | ||||
| NO. | ITEM |
Requirement
|
Testing method | Unqualified classification |
|
1 |
Module appearance |
There is no dirt on the surface of the module, no scratches visible to the naked eye, and no impurities in the plastic |
8X magnifying glass |
A |
|
2 |
lens |
When inspecting under the light of 800±100Lux intensity head-up and 45-degree reflected light, there should be no visible scars or dirt. |
8X magnifying glass |
A |
|
3 |
Thread glue |
The dispensing length is 1/3-1/2 of the circumference, and the glue should not overflow to the lens end surface and the lens base |
8X magnifying glass |
A |
|
4 |
Sealant |
Fill the sealant evenly between the base and the FPC without gaps or thickness Uneven phenomenon, there must be no glue overflowing the edge of the FPC to cause the appearance size to exceed the standard phenomenon |
8X magnifying glass |
A |
|
5 |
PCB |
1) The surface is free from dirt and the printed characters are clear; 2) The length of the edge burr is less than 1mm, the width is less than 0.3mm; 3) The length of the edge notch is less than 1mm, and the width is less than 0.1mm. Each edge is not more than 2 |
45X microscope (Continuous zoom) |
A |
|
Dimensions |
||||
| NO. | ITEM |
Requirement
|
Testing method | Unqualified classification |
| 1 | high | Meet the requirements of the drawings | Digital caliper | A |
| 2 | length | Meet the requirements of the drawings | Digital caliper | A |
| 3 | width | Meet the requirements of the drawings | Digital caliper | A |
Our products are sold all over the world, you can rest assured.
