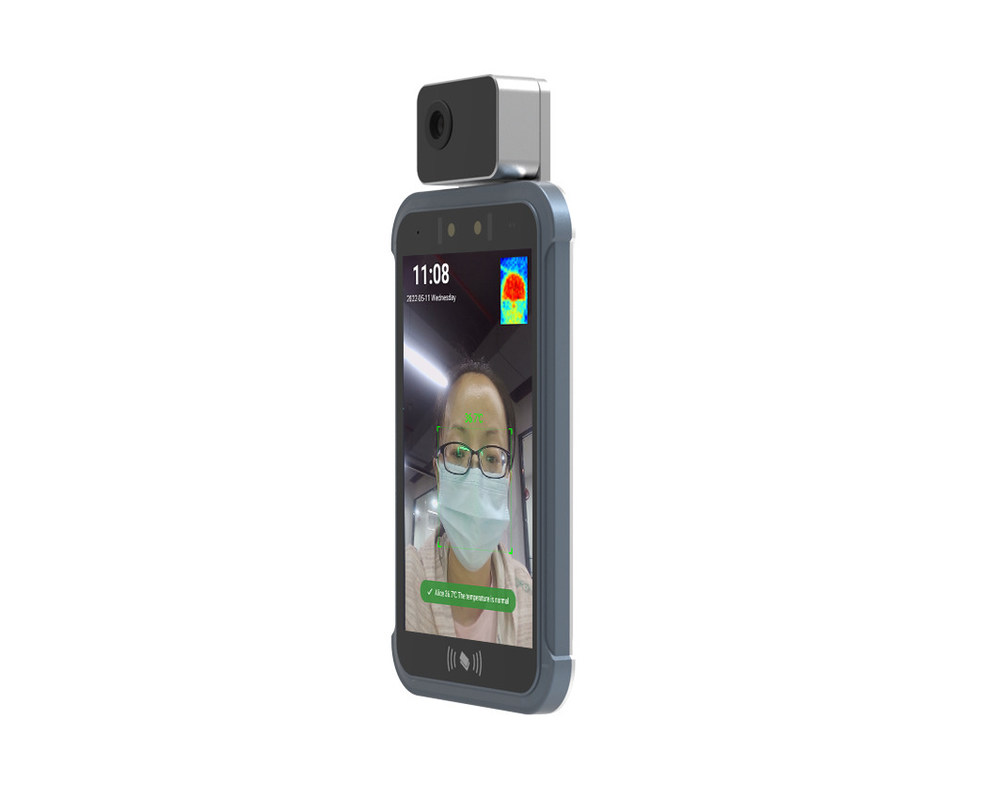

OEM Smart Lock Body Temperature Detection System , 8 inch Face Recognition Security System
-
High Light
OEM Body Temperature Detection System
,8 inch Face Recognition Security System
-
Screen Size8 Inch
-
Temperature Measuring Module BrandHIKvision From China
-
Measuring Distance0.5-2M
-
Temperature Measuring Resolution19200 Points
-
CPULatest RK3568
-
Place of OriginChina
-
Brand NameOEM
-
CertificationFCC, CE, CCC
-
Model NumberTR08A-T
-
Minimum Order Quantity1pcs
-
PriceUS$400-US$420
-
Packaging Detailswhite box
-
Delivery Time30 work days
-
Payment TermsT/T
-
Supply Ability1000PCS/WEEK
OEM Smart Lock Body Temperature Detection System , 8 inch Face Recognition Security System
Wholesale Smart Lock Face Recognition System Body Temperature Detection For Security
The all in one device is widely use in office, hospital, smart building, super market, school, and so on, we have some videos for you easy understand the operation of the products, please let me know if you need it.
If the product meet your demand, please feel free to contact us. We're sure your any inquiry or requirement will get prompt attention.
| Device shell | Plastic + Aluminum alloy | ||||
| Operating system | Android 7.1 | ||||
| CUP | RK3399 | ||||
| RAM | Standard:RAM 2GB LPDDR3 Memory:16GB EMMC | ||||
| Temperature measuring module brand | HIKvision from China | Touch screen : | 8“ multipoint capacitive touch screen | ||
| measuring distance: | 0.5-1.5M | ||||
| Temperature measuring resolution | 160*120 | Screen resolution: | 800*1280 | ||
| Interface | TF card expansion | Support maximum 32GB | |||
| WLAN/WIFI | 2.5/5GHz dual frequency WIFI 802.11 a/b/g/n | ||||
| Bluetooth | V5.0(Standard) | ||||
| LAN | 10/100/1000M self-adaptive | ||||
| Data interface | USB3.0*1 USB2.0*1 | ||||
| Microphone | x1 | ||||
| Sound | Speaker 1.5 watt | ||||
| Key | Reset, Recovery | ||||
| RS485 | RS485*1 | ||||
| Wiegand interface | Support | ||||
| GPIO interface | *2 (Alarm switch, door magnetic detection) | ||||
| Power supply | 12V2A/POE power supply, support DC extension cord, 0.5 square line ≥100 m | ||||
| Operating environment | Operating temperature | 30℃ ~ 45℃ | ESD | ±4kV exposure, ±8kV air | |
| Operating humidity | 20%-95% noncondensing | Lightning protection | Not support | ||
| Storage temperature | -30℃ ~ +80℃ | Surge | Support | ||
| Power consumption | Max <18w | Harmonic | Support | ||
| Protection grade | Front, side IP55 | Uninterrupted | 7*24 | ||
Temperature setting
[Temperature measurement function]: the function of detecting human body temperature, which can detect temperature at the same time when face detection.
[Mask detection]: Check whether the person wearing a mask.
[temperature measuring module]: There are four temperature measurement modules, HK, HM, GD, GLH, MLX, the factory default settings, please don’t modify it.
[Temperature unit]: There are degrees Celsius ℃, and Fahrenheit degrees ℉.
[Standard temperature max min]: the standard temperature range of human body temperature.
[print setting]: Connect the printer by Bluetooth or USB port, chose the correct printer code, set the printer template type, then enable printing, start printing face image.
*Print broadcast: Used in conjunction with other APK developed by the customer, this function can send data to the customer's APK in the form of broadcast and print it out.
*Printer code: The printer should support anyone of GBK/GB2312/GB18030/UTF-8/UTF-16/ISO-8859-1/Shift_JIS/EUC-JP font or character. And please select the corresponding font code in the face recognition device.
*Printer template type: There are two modes of Custom and Default to choose from. In Custom mode, you can set the print content and format.
[note]: Select a printer that uses the ESC/POS standard thermal printing protocol.
