YT-60 RV1109 Rockchip PCBA Running Linux Support Develops Customized PCBA

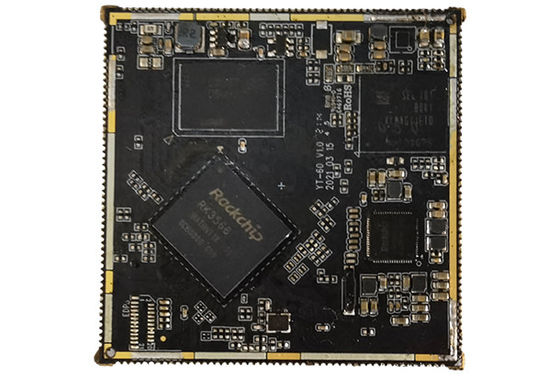

Yt-60 is a core board based on Ruixin micro rk3566. Rk3566 has built-in Ruixin micro self-developed NPU, computing power of 0.8tops, 512 int8 MAC 128 int16 / fp16 / bfp16 MAC up to 800MHz. Ruixin micro also provides developers with a simple and easy-to-use model conversion tool RkNN toolkit, which supports one click conversion of mainstream architecture models of cafe / tensorflow / TF LITE / onnx / pytorch / keras / Darknet.
Electrical and Structural Parameters
|5V input voltage||5V/2A|
|RTC input voltage||2.5 - 3V/5uA|
|Output voltage||1.8V/3.3V(can be used for junction PCB power supply, 0V after dormant)|
|Working temperature||-10~70 degrees [actual measurement can reach -40 degrees to 80 degrees]|
|Appearance||Stamp hole mode|
|Core board size||45mm*45mm|
|Pin pad size||1.25mm*0.7mm|
Rk3566 has rich interface expansion capabilities. Support a variety of peripheral high-speed interfaces and pcie2 1 1x1lane, which meets the expansion requirements of 4G / 5G, WiFi 6 and NPU, and supports up to 4 USB ports, 1xusb3 0/USB2. 0 HOST + 2xUSB2. 0 HOST + 1xUSB2. 0 OTG. It supports Gigabit Ethernet port, multiple cameras, Mipi CSI 4lanes, which can be divided into two groups of 2x2lanes for independent use, 16bit DVP interface, bt1120 input and VC mode. Rk3566 has a complete display interface, supports HDMI 2.0 output, supports dual channel Mipi DSI, can drive 2.5k LCD screen, supports eink, can directly drive ink screen, and supports EDP. Rk3566 has abundant peripheral interfaces and supports 10x UART, 6x I2C, 16x PWM, 4x SPI and 4xadc.
